The NexiusZoom and NexiusZoom EVO stereo microscopes enable examining your specimen with high-performance precision and generate three-dimensional images allowing observation for your highest demanding microscopy applications. These top-level zoom microscopes are perfect for analyzing all kinds of material surfaces or to observe and prepare biological samples

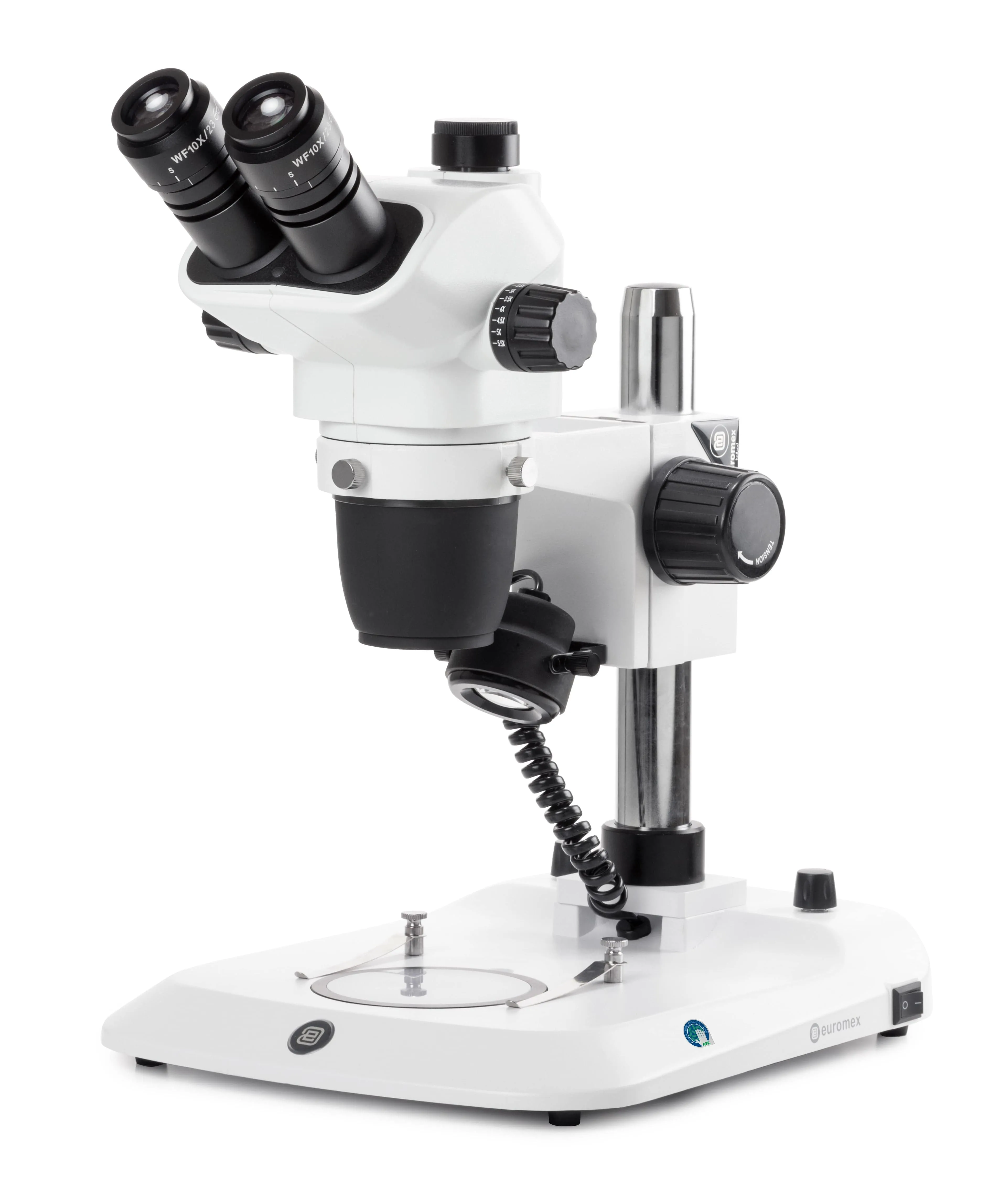

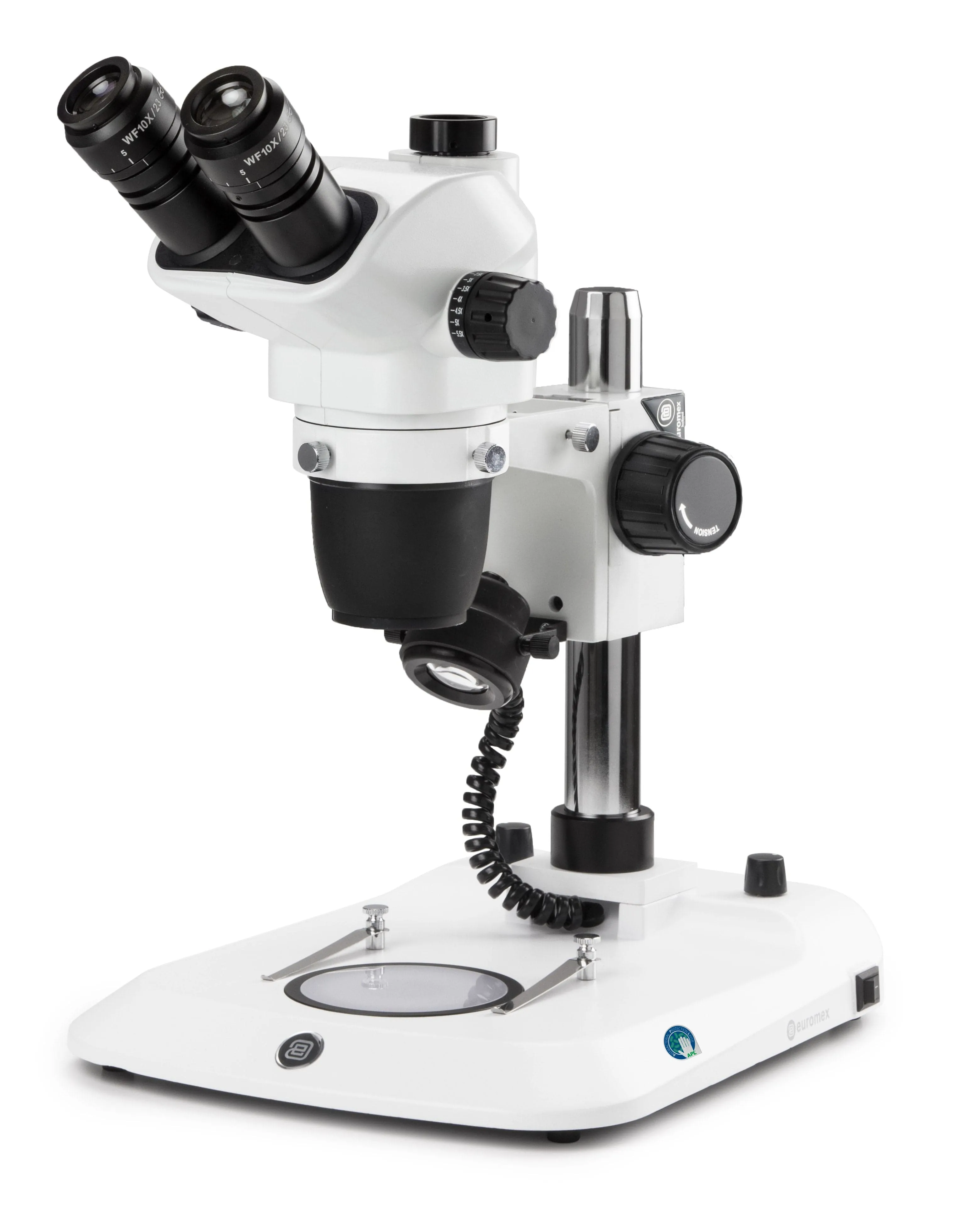

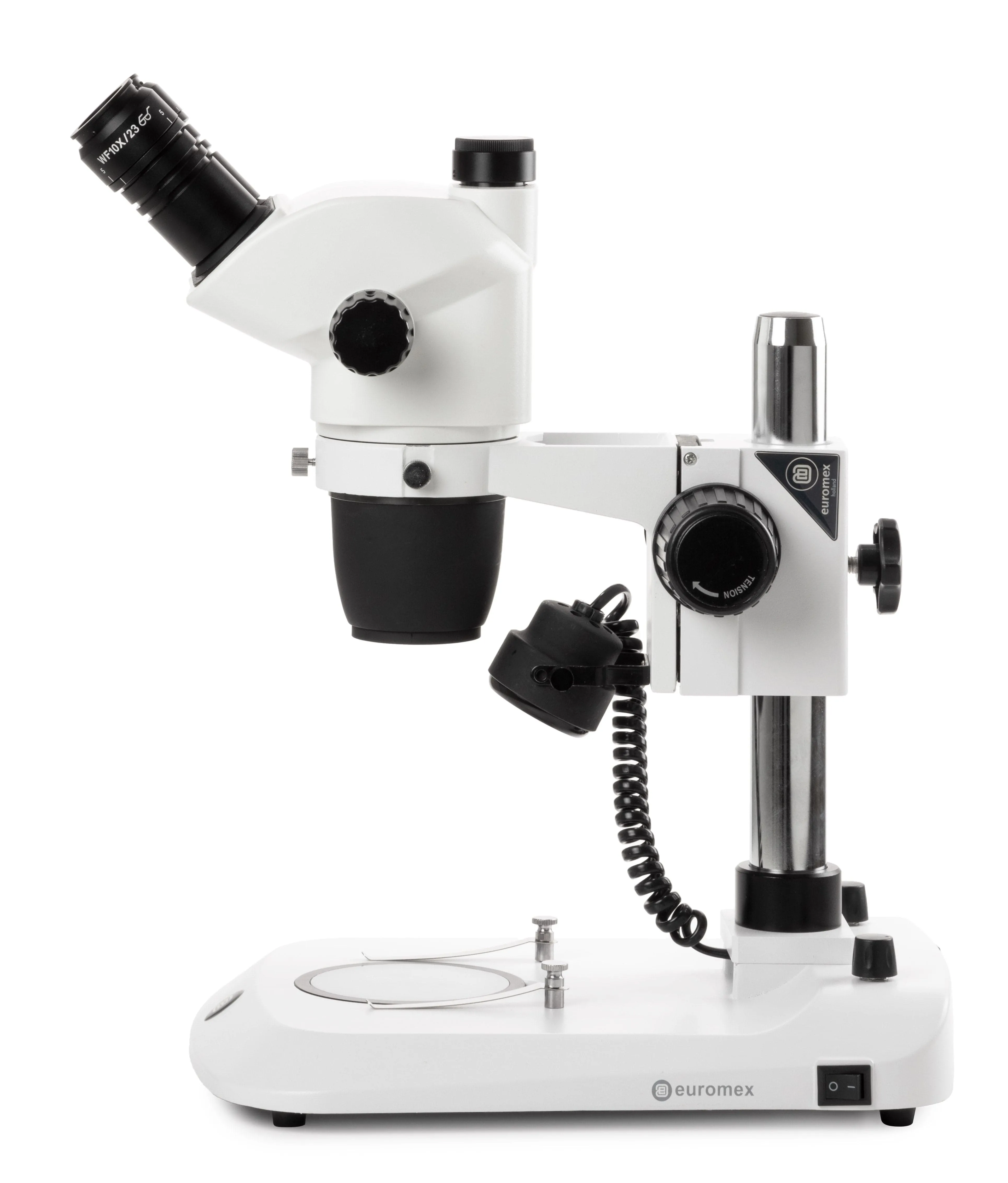

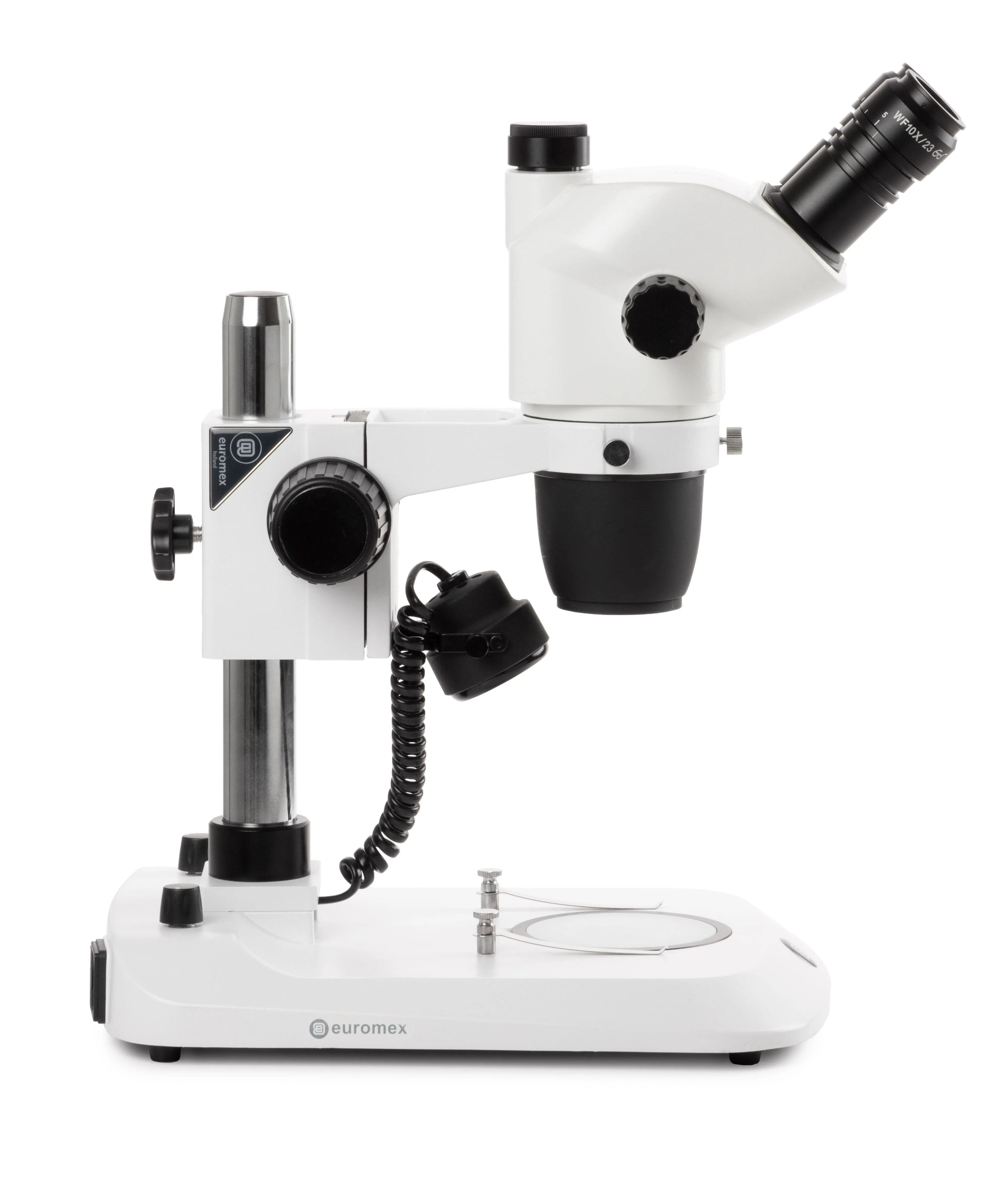

The NexiusZoom NZ1703-P microscope is supplied with a pillar stand, with LED illumination. Ideal for a wide variety of educational and laboratories applications.
Features:
- Trinocular head with HWF 10x/23mm
- Zoom ratio 1:8.4, total magnification 6.5x to 55x
- Ergonomic pillar stand
- Double 3 W LED illumination
- Large working distance
- APL, antimicrobial
EYEPIECES
The NexiusZoom EVO is supplied with a pair of HWF 10x/23 mm eyepieces.
HEAD
Trinocular head with 45° inclined tubes. Both eyepieces with ± 5 diopter adjustments
Interpupillary distance adjustable between 54 mm and 75 mm. Fixed light path beam splitter (50:50). Equipped with click-stops magnification knob.
OBJECTIVES
Supplied with a 1:8.4 plan achromatic zoom objective with 0.65x to 5.5x magnifications, a field of view from 35.4 mm to 4.2 mm. WD 110 mm.
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput.
STAND
- Ergonomic pillar stand with rotating mirror and 3W LED transmitted and incident illuminations.
- Supplied with two object clamps. Alloy metal cast, hardened coating.
ILLUMINATION
The 3 W transmitted and incident LED illuminators with internal power supply 100-240 V operation. Both illuminators can be used simultaneously, the light intensities can be adjusted separately.
APL (ANTIMICROBIAL PROTECTION LAYER)
APL is a revolutionary paint treatment applied to the most critical parts of our products. A microscope with APL will restrict the growth of micro-organisms, including bacteria and mold.
PACKAGE CONTENT
Supplied with power cord, dust cover, a spare fuse, user manual. All packed in a polystyrene box.
