Name: Assembly: Coolant Lines, Hoses T3 2.1L Waterboxer
SKU: 908764

Assembly: Coolant Lines, Hoses T3 2.1L Waterboxer

$ 97.90

$ 46.00

Save: $

Item:

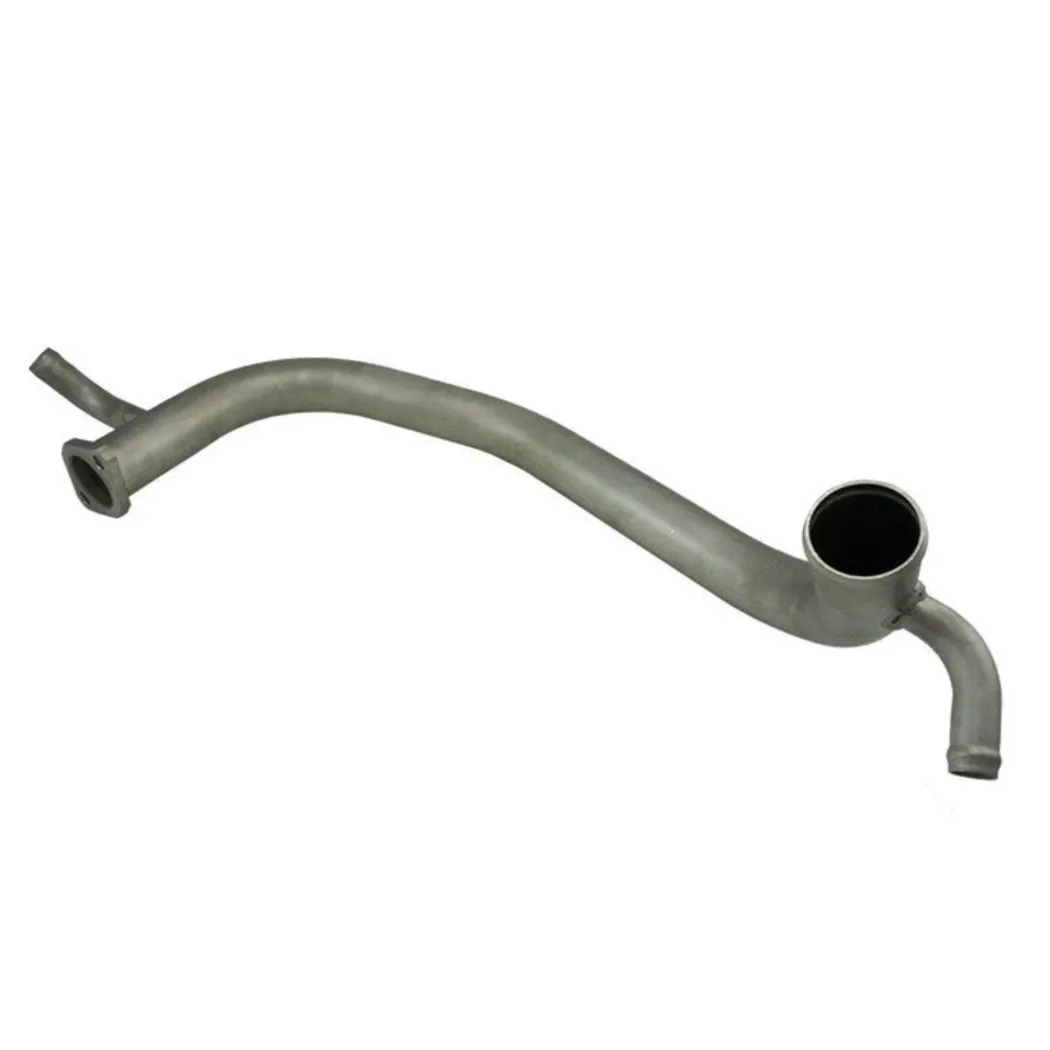

1 Coolant Pipe
1 SS Coolant Pipe stainless steel

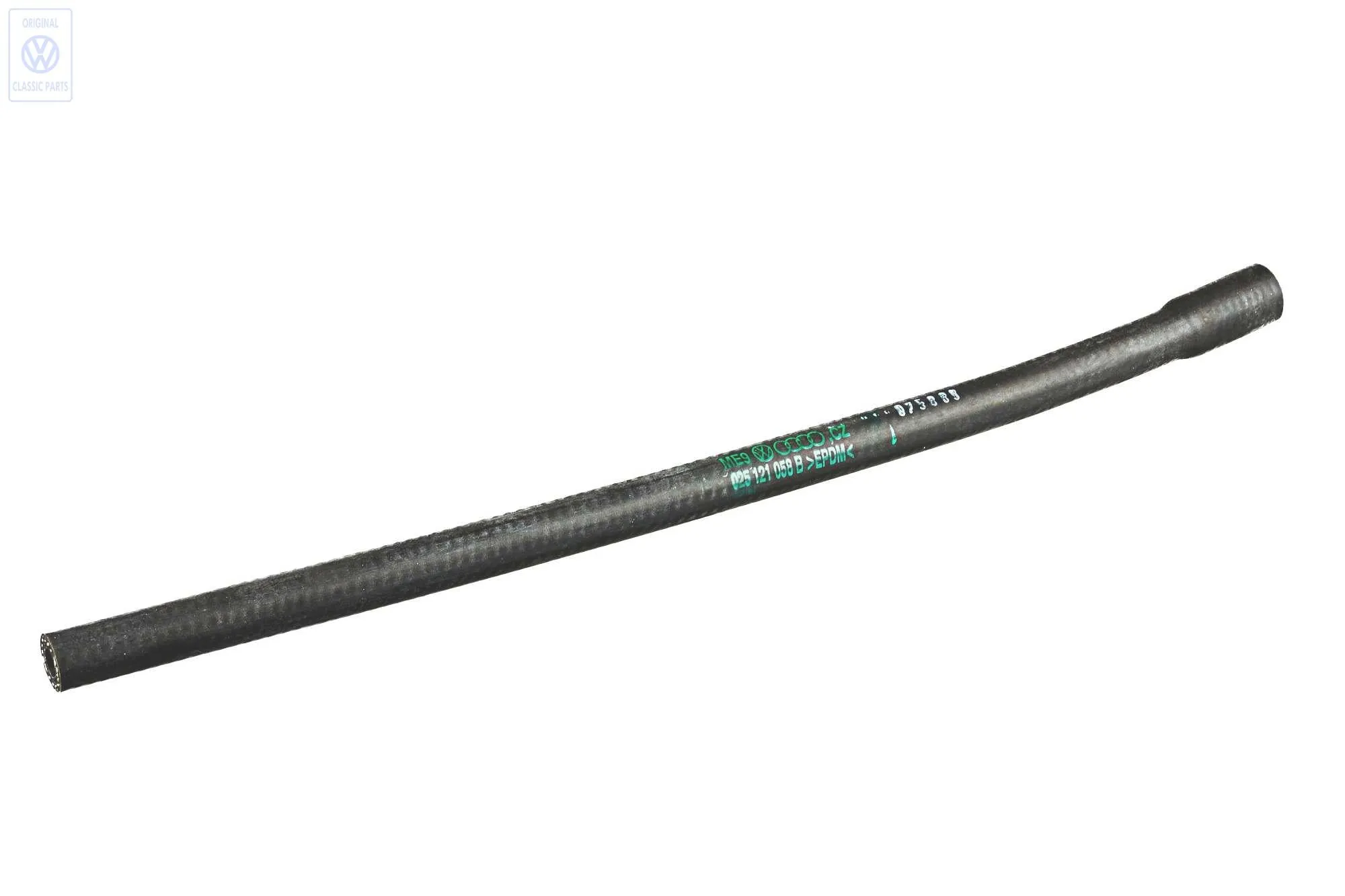

2 Coolant Hose
3 Coolant Hose
Elbow

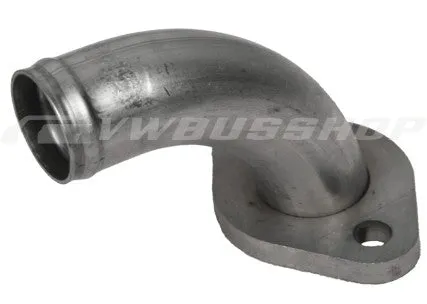

4 Elbow (without A/C)
5 Coolant Hose Adapter

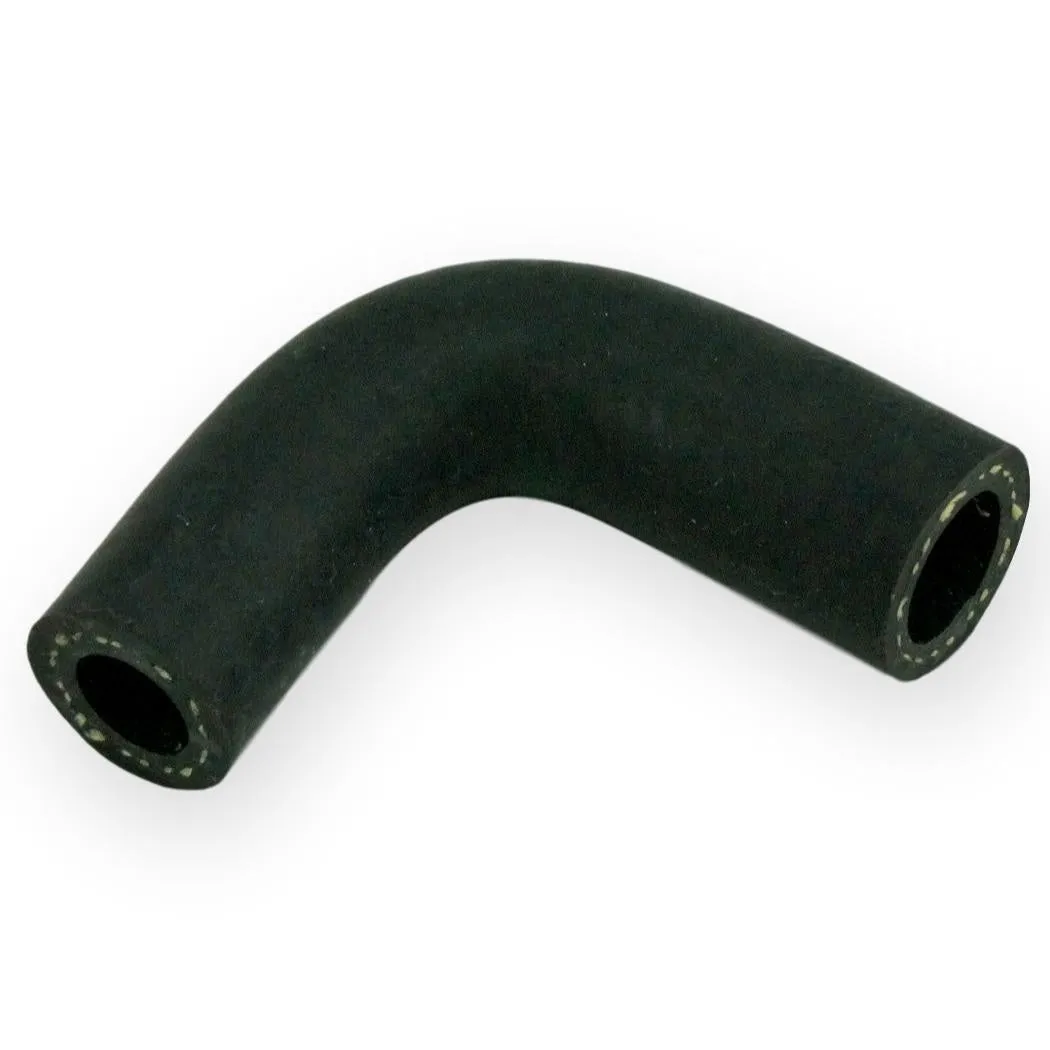

6 Elbow Hose
7 Elbow Hose

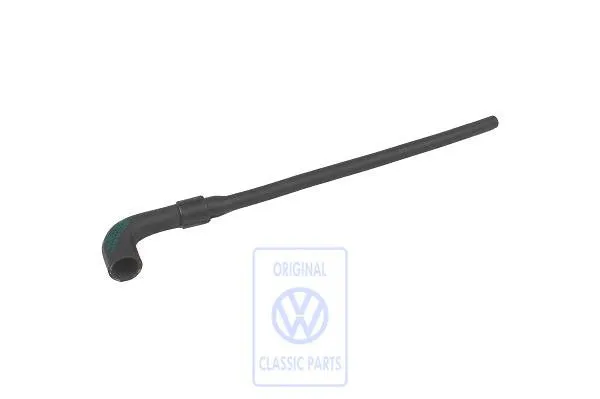

8a Coolant Hose Expansion Tank
8b Coolant Hose Expansion Tank

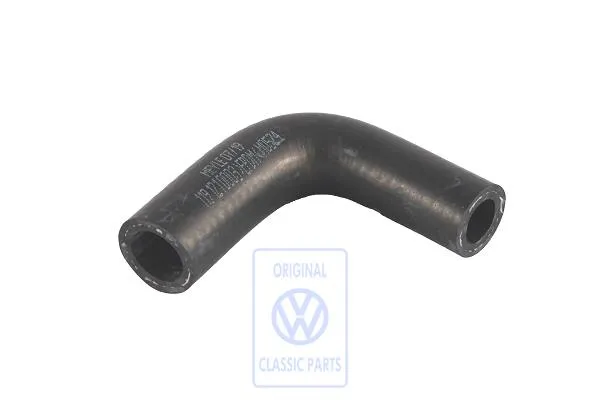

9 Coolant Hose Elbow
10 Coolant Hose S (standard transmission)

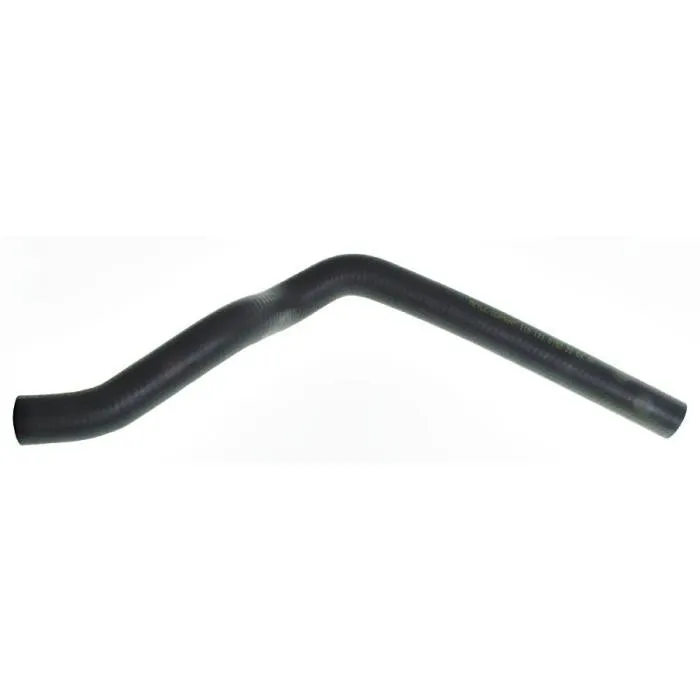

15 Radiator Supply Hose
16 Radiator Return Hose
17A Coolant Hose Expansion Tank
18 Coolant Hose S

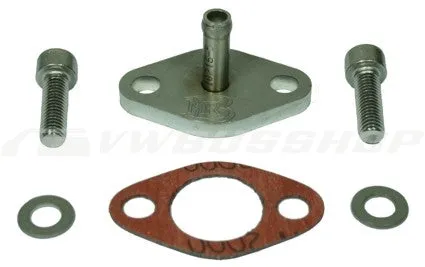

19 Coolant Flange Kit
42 Coolant Flange (stainless)

Unavailable

Please select combo product attributes

The combo subtotal is $,SAVE$

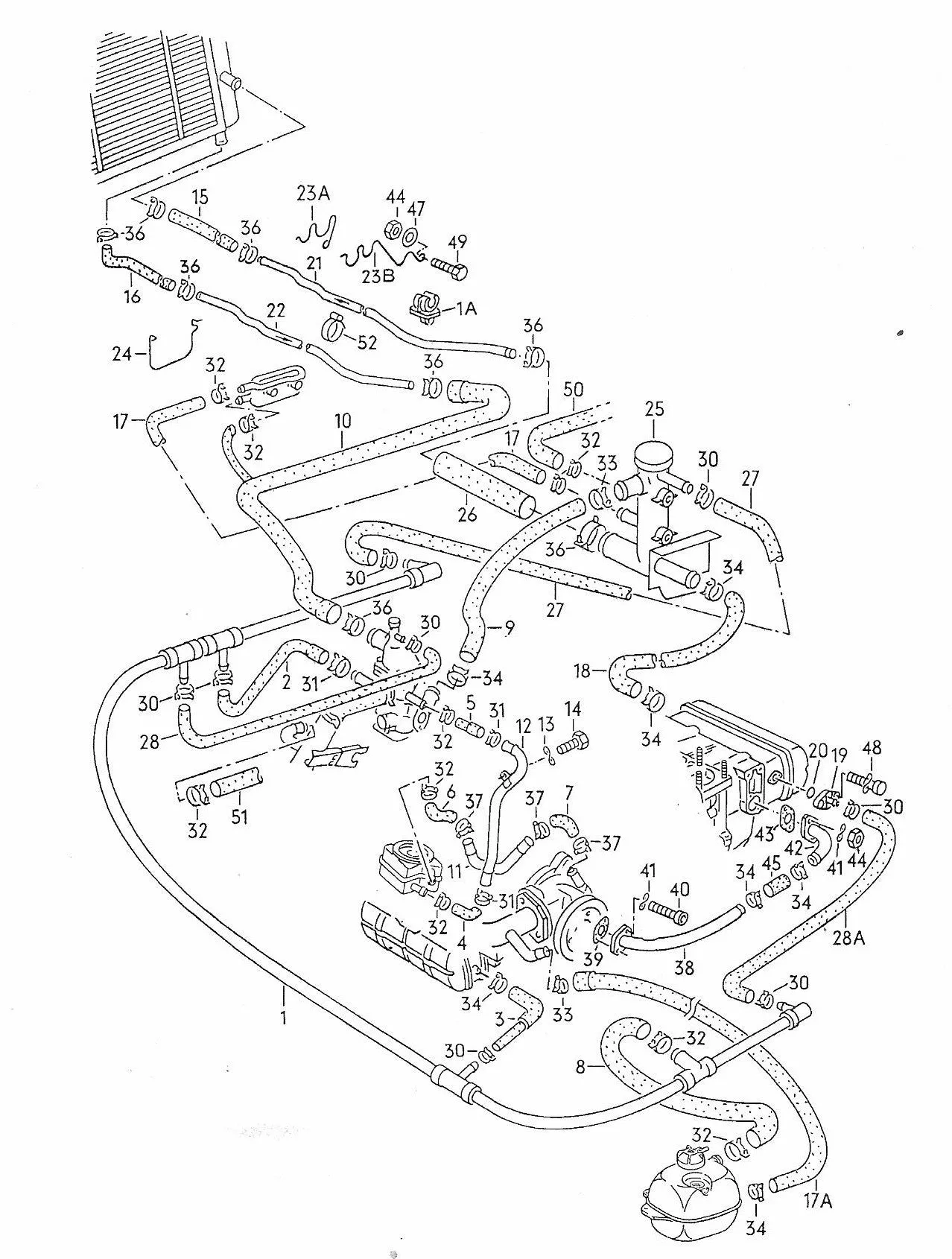

This is an overview of pipes and hoses of the cooling system in the T3 Vanagon 2.1 L Waterboxer engine (86-92) which will assist you with your selection of the right part. Parts listed here are for the standard setup with manual transmission. There are some variations in the system over time and you can call us if you are not certain.

Select any number in the drawing and you will find the corresponding part (and SKU) in the identifier list below which you can put into your shopping cart. The part number (SKU) will appear when you click on the item in the identifier list below once. It will also show you the corresponding image.

Please note: some items have different options depending on your coolant layout (example: 8a and 8b)

The long coolant pipes underneath (21, 22) are available in stainless steel.

Part Numbers: 025121081G, 025121062E, 025121058B, 025121058C, 025121058D, 025121058E, 025121058G, 025121058H, 255121081A, 251121082, 251121083H, 025121108D, 025121108E, 025121058A, 025121058J, 025121160D, 251121130B, 025121171
